Barrisol Brand

Barrisol stretch coatings, which are used as false ceilings and wall coverings, have found now widespread use among designers and architects as revolutionary and loved products.
In the third millennium, the speed, efficiency, versatility, and durability are the most important principles of interior design, by which Barrisol has been able to meet all the above demands.
Barrisol stretch coatings can be installed with a maximum thickness of 0.05 to 0.10 mm, in more than hundred colors and designs with glossy, matte, transparent, porous fabric and velvet fabric coatings in the shortest possible time.
This technology is very light in weight, and can be installed with a special device at a specific temperature as integrated in dimensions of 8 x 8 meters (64 square meters).
The installation procedures are very fast. The profiles (rails) are installed on the site in accordance with a predetermined plan and common demands of designer and employer on the basis of the desired final form, and are then covered with a stretch coating.
It should be noted that these coatings have no limitation and can be implemented in accordance with any design and idea in any environment.
Barrisol stretch coatings have a high flexibility and resistance against sudden shocks, and the elastic property allows them to return to the initial state expected if their surface is hit.
This cover has antibacterial and dust repellent properties. Thus, it is hygienically very suitable for operating rooms and laboratories.
This type of coating with the unique property of “translucide” has the ability to filter and level natural and artificial lights.
This feature enables designers and experts to change the character of the interior spaces with the help of light and color.

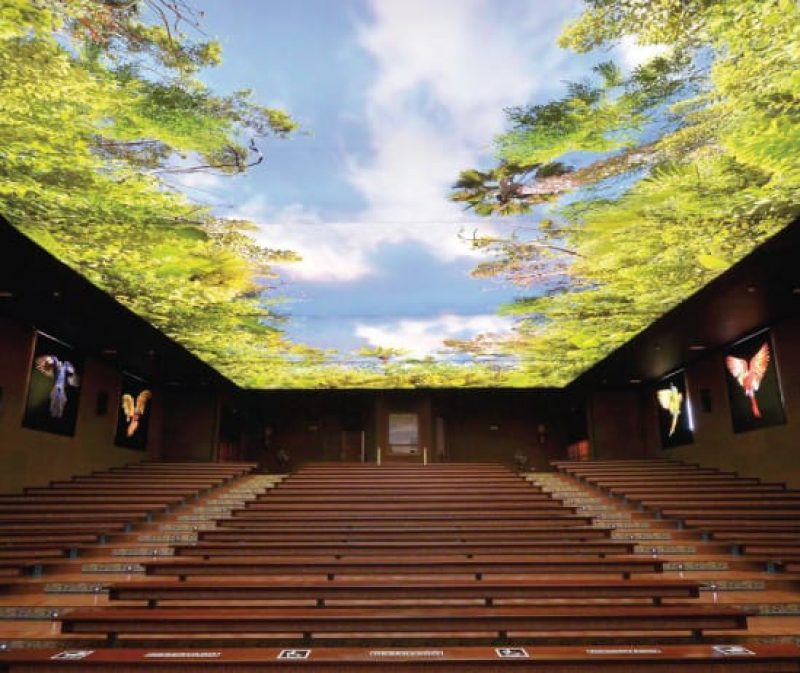

This technology has unlimited applications in the design of store showcase, restaurants, coffee shops, waiting halls, design of decor and scenes of theater and cinema, photography and video studios, and other places where change in color of the light is taken into consideration.
This coating prevents the spread of microbial diseases, and destroys and removes more than 50 kinds of germs, bacteria and fungi from the environment. Therefore, it is ideal for spaces such as hospitals, laboratories, etc.
“Ohanian Trading is the exclusive representative of France’s Barrisol stretch ceilings and Swarovski lighting systems in Iran.”

What is a Barrisol strech ceiling?

A Barrisol ceiling is a non-flammable sheet of PVC (classified M1 in France, Bd B-S2-d0 in Europe, Class 0 in UK and Class I in the USA) which is tightened by the use of heat on the periphery of the walls thanks to a specific track system. (Patent deposited).

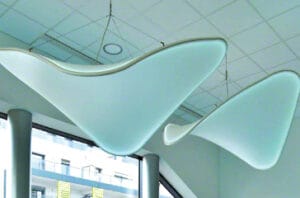

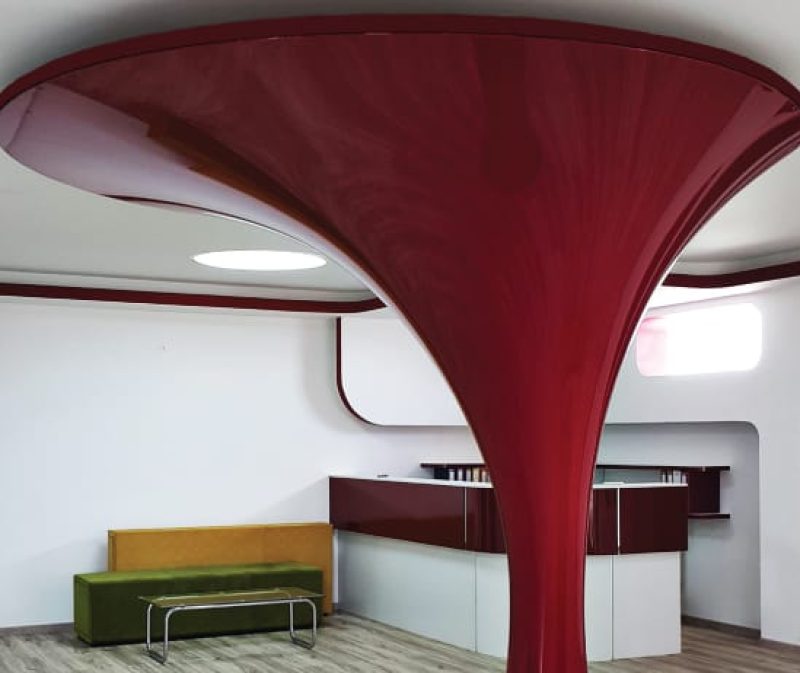

Thanks to the numerous amounts of Barrisol track lines used in installation all types of realizations are possible, including 3D forms and organic shapes.

Why Choose Barrisol?

Barrisol stretch ceilings are great for renovations or in new building construction. They provide an excellent solution for solving technical problems; they offer a unique design with a perfect result.
BARRISOL® allows you to create all types of ceilings, with unlimited design possibilities.

DESIGN	bring out the creativity large variety of possible designs in Barrisol Tradition variety of designs until the infinite in Barrisol Star adapt to any surface, any form, any situation, any place allow all the forms : horizontals, rounds, inclined, in 3D realize any new design
MODULARITY	allow at all moments, in a few minutes, the unhooking of the ceiling adapt to all the styles, with all the places of life thanks to the choice of textures and colours the installation of new lights, units and technical ducts is always done by Barrisol approved professionals. the tracks are fixed on the perimeter of the walls at desired height
SIMPLICITY	dry and clean installation installation is made by Barrisol approved professionals
ACOUSTIC & AESTHETIC	Barrisol acoustic joins to the insulating materials for a good acoustic correction of the buildings powerful tests of acoustic correction in the school buildings refines musical audition optimal acoustic absorption in the offices

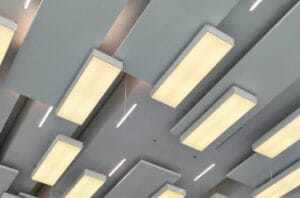

LIGHTING	profit from the Barrisol techniques for the integration of all types of lights incorporate the suspended and integrated lights, spots, optical fibres on the large surface, the ways of light form separators rails, luminous separators can be integrated into the separators Barrisol Star ceilings and mural translucent multiply the lights by reflecting them

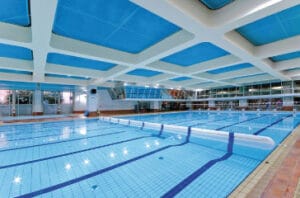

WATERPROOF	are insensitive to the moisture, to the condensation, effective vapour barrier are appropriate for the places with high hygrometry can be washed with water in the majority of their textures are impermeable to the water. Often the rooms in the case of water damages are protected from the water; the ceiling is forming a pocket of reserve at the time of the infiltration of water and by regaining their initial shape after draining.
ECOLOGY & RECYCLABLE	respect the environment use not much of energy 1 000 square meters of Barrisol represent < 180 kg of material for a volume of 0,10 cubic meter (a ceiling in skirting-board of the same dimension represent 50 cubic meters of trees) long lifetime recycling to 100% non toxic (in conformity with the European and international standards)
SAFETY	ceilings firebreak (in complex), incorporate all the safety appliances answer the safety requirements classification M1 were the subject of approvals of the Ministry of the Interior in France and the organizations of safety and salubrity of France and many countries by their low weight, do not wound in the event of explosion or of earthquake do not accumulate static electricity in the plenum
ECONOMY	Ceilings are guaranteed by the manufacturer : 10 years against all hidden defects of manufacture : welding of harpoons and breadths excellent quality price ratio, long life of the installation no dirty maintenance protect the frames, the concrete or steel structures, the under-faces of roofs present a double aspect of energy saving : lower volume to be heated, reduction of the heat losses outwards
DURABILITY	resist to the cold and the heat their tension is constantly maintained resist to the sea water, chlorine, the majority of the gas vapours such as formol, ether, trichlorethylene… are insensitive with x-rays resist to significant loads caused by the water damages
MAINTENANCE	allow at all moments, in a few minutes, the unhooking of the ceiling facilitate the access to the plenum in the case of water damages, repairs of technical units, and take again their initial tension are cleaned up with the adequate Barrisol products (except brushed suede) the installation of new lights, units and technical ducts is always done in connection with the installer approved Barrisol
THERMAL INSULATION	with the ceiling or high hollow block floor, Barrisol creates a layer of air the layer of air, like a double glazing, forms an insulating cushion and prevents the formation of spectrums of condensation on the Barrisol fabric decrease the heat losses of the floors of the roofs decrease volumes to be heated while being installed easily with desired height are combined with the heat insulation for excellent results
STABILITY	technical studied for the stability of the installations special technical for great surfaces technical for the stability of the ceilings with sides stability of the ceilings in great height stability of the appliances installed in the ceilings thermally stable of -40 to +50°C, no change of visible aspect
TECHNIC	bring the adequate response to each technical problem compensate for the manufacturing defects or apparent malformations of the slabs avoid the notches, the electric cables being able to be placed in the plenum suppress the halos, spectrum effects do not overload the frames avoid the thermic bridges
MEMORY	consist of molecules with memory after deformation, return to their initial form and their tension find their initial form after each reset absorb the impacts of balloons and take again their tension found their position after evacuation of rubbles fallen from the plenum
INNOVATION	profit from continuous technical leap and decorative advanced extend their applications to new sectors, create the adequate techniques allow the innovating designs, extend the creativity allow the realization of all new projects

Guarantee granted by NORMALU S.A.S, manufacturer, to users of BARRISOL stretched ceiling.
Guarantee on the manufacture of the weldings, harpoons and sheets.
By its structure and its interchangeableness (the ceilings can be taken down and remounted again, without damaging the supports), the BARRISOL ceiling is subjected to the biennial “guaranteed” insurance.
However, BARRISOL NORMALU S.A.S grants a 10-year guarantee on the welded seams as well as on harpoon profile welds.
The color and the aspect of the ceiling are guaranteed two years under normal conditions of use.
Damaged ceilings with defects related to this guarantee will be replaced as soon as they have been returned to the factory in order to determine the origin of the damage.
Nevertheless BARRISOL NORMALU S.A.S grants this guarantee only if the material used for the installation of the ceiling or any other item incorporated into the ceiling, are all manufactured and supplied by BARRISOL NORMALU S.A.S
Example : BARRISOL ceiling sheet, Ceiling rails, Ceiling separators, Ceiling curved rails, Spotlight mounts, Reinforcing rings, as well as other accessories

Ceilings are delivered from the factory in sealed cardboard cartons. Please handle cartons with care.
Ceilings can only be installed in sealed finished buildings that are clean and free of dust. If ceiling cartons are subject to cold/freezing conditions it is most important that they rest for 24 hours in a warm environment before opening.
Barrisol ceilings require little maintenance, a range of cleaning products are available to suit your ceiling finish.
The ceilings are custom made in our factory, adaptation can be necessary during installation therefore it is imperative that only authorized factory trained installers perform installation and dismantling of Barrisol ceilings in accordance with their technical training.
In the case of removing a Barrisol ceiling :
- Heat the ceiling using the hot air generator.
- Gently pick the harpoon from the track with special Barrisol removal tool and spatula.
- Let the sheet cool before folding and packing.
- Use protective film between layers.
Ceilings installation in new buildings under construction, can only be performed in sealed, dry and dust free areas.
- The plenum must be 100% airtight.
- Insulation materials installed in the plenum will have a minimum fire classification M1(non flammable)
- Roller blind boxes must be airtight.
Ceiling installation in existing buildings does not require the removal of furniture; however it is advisable smaller items are removed for safety and that any furniture is covered for protection.
Lighting
Directional embedded spotlights are generally compatible with BARRISOL. When the diffused heat is greater that 50v C, it is obligatory to place an insulating ring between the rose of the spot and the BARRISOL sheet.
The power of the spots should not be higher than 50W. Spots that transmit more than 60v C to the metallic rose are not compatible with BARRISOL ceilings, even equipped with insulating rings.
Lighting transformers are generally fixed directly to the existing ceiling or on the wall. The Barrispot is formed to receive the transformer which can be reached by hand without taking down the ceiling.
Ventilation
Mechanical ventilation must be adjusted to ensure that air inlet and air extraction is balanced.
Keep sharp objects clear of your Barrisol ceiling, handle ceilings with care.
We are ready to assist you if you have engineering or other problems, please contact us immediately.

Your Project Step By Step

Thanks to our unique concept, the BARRISOL stretch ceiling is simple and fast to install.
As an indication, the installation of a BARRISOL ceiling of 50 m² lasts only one day (for a simple ceiling). Moreover, the installation does not require any displacement of furniture.
The result obtained will give you whole satisfaction.

INITIAL CEILING: Your initial ceiling
If your ceiling presents level differences, hollows and bumps, cracks, aureoles due to humidity, stains requiring to be repainted, etc. Barrisol is the solution for all this problems!

STEP 1: Your project
Visit of a technician to define and study your project

STEP 2: Measurements
The BARRISOL® technicians take field measurements of the exact shape of the ceiling to be fitted.

Step 3: Tracing
The field measurements are transmitted and your ceiling is traced in our technical offices

STEP 4: Production
The ceiling is custom made to the exact measurements in our factory.

STEP 5: Rails
The BARRISOL® rails are fixed to the perimeter walls at the desired height

ETAPE 6: Installation of accessories
Installation of lightings or accessories

STEP 7: Installation of the ceiling
The BARRISOL® ceiling is stretched and installed into the rails

FINAL CEILING: Your ceiling after the installation of the Barrisol ceiling
With Barrisol, not only problems of cracks, hollow and bumps, aureoles, and other stains will be forgotten and the result will be splendid and will delight you at every moment. With Barrisol ceiling it is the end of the perpetual painting refreshments of your ceilings!
Barrisol requires only a reduced maintenance and guarantees a perfect result for ten years.
